Aoshima 1/700 scale Water Line Series
How to build IJN CV Soryu
Step 5 : Twin Funnels etc.

Twin Funnels

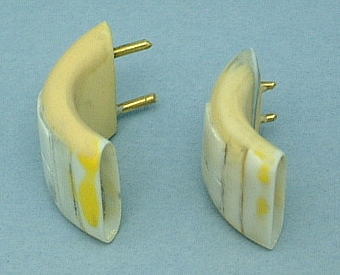

I scratched built the twin funnels of plastic sheet and epoxy putty.

Waste steam pipes were made of stretched sprue and 0.5mm brass tubes. They were put along side line of funnels.

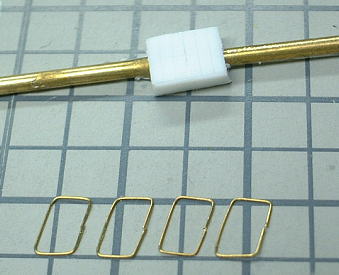

I made the jackstays on the emergency vent caps on funnels. Wrap a 0.2mm brass line around the parallelogram plastic lump.

In this way, the four parallelogram lines were finished. They became the jackstays.

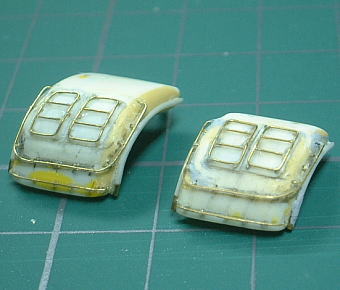

Put them on the emergency vent covers on funnels.

Furthermore, I replicated two parallel jackstays on the funnels.

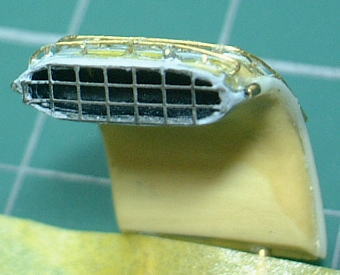

Funnel caps were covered on the vents. I replicated them with the photoetch "AE-09 Metal Mesh Rectangle 0914" from FineMolds.

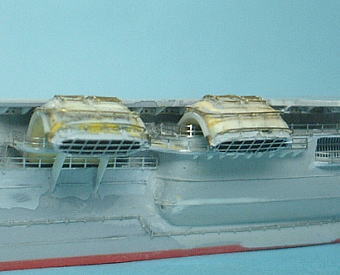

I tuned in exactly a position of funnels with flight deck.

Mast Stands

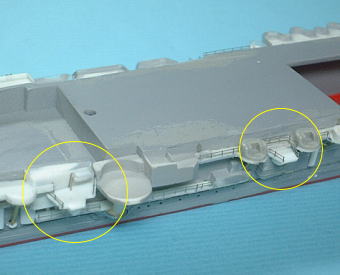

I replicated four mast stands. The forms of them are different each other.

The mast stands were put to side of ships.

Beams of Props

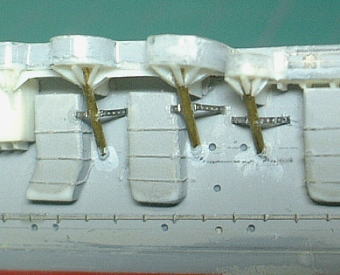

I replicated the beams of props of the photoetch "AG05 Metal Belt (Circle Hole Narrow) Stainless Steel t-0.15mm" from FineMolds.

It considerably became like Soryu!
